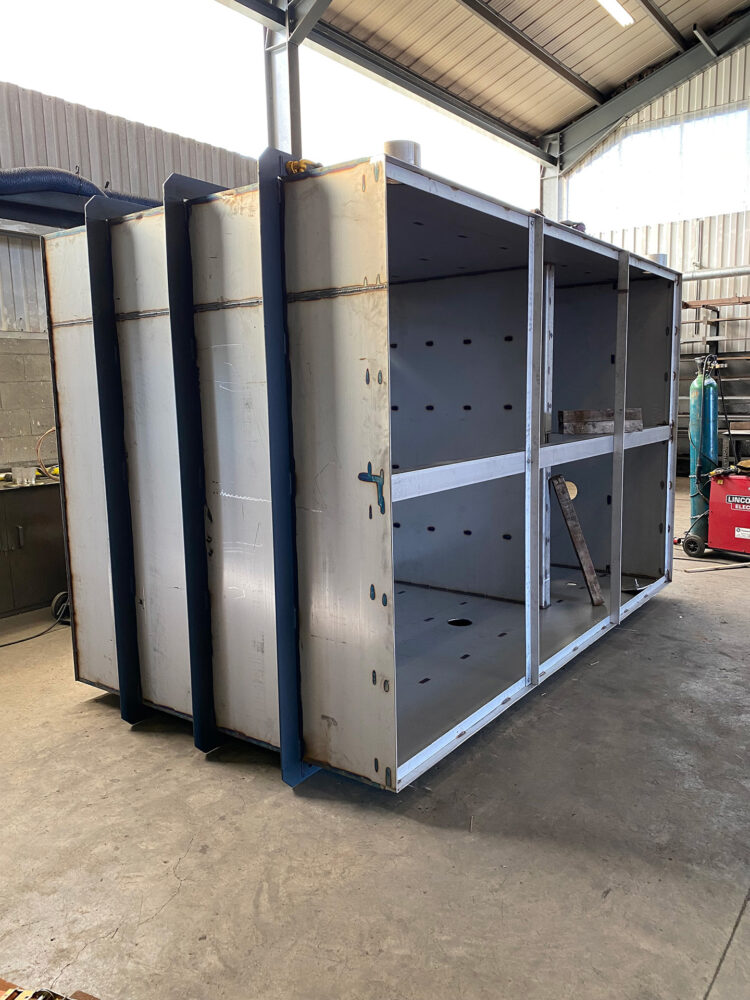

Design & Engineering of Foundations & Washer Tank AutoCAD 2d layouts of foundations Inventor 3d modelling of foundations & stainless steel fabricated Washer tank Washcoater Tank – Installation of 316 stainless steel pre-fabricated tank Factory floor excavated for two sump pits, Washcoater foundation and drainage trenches ECL designed and fabricated 316 stainless steel Washer sump…

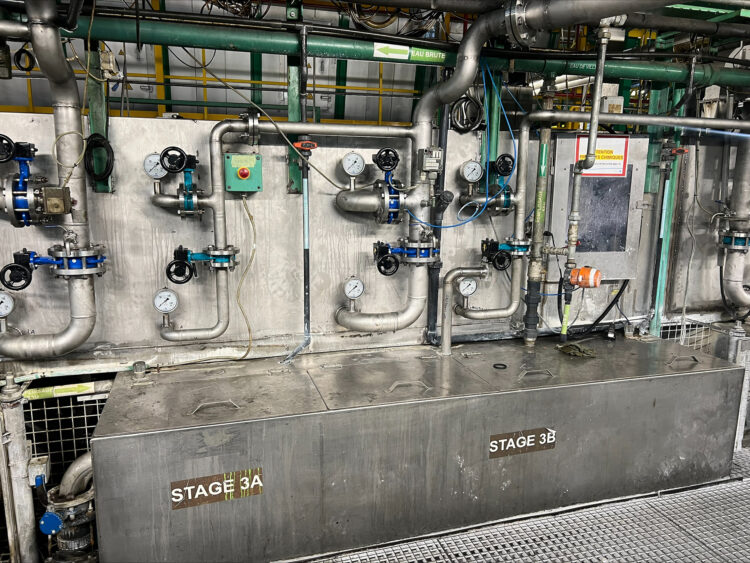

Strip out machine side walls, headers & pipework. TIG weld new 316L stainless steel upper side walls additional header assemblies and pipework.
Mark up & match mark all Palletiser sections & parts, dismantle each Palletiser individually with Strappers & Pallet Conveying, remove the parts out of the factory and load into trucks for transport to new individual factories for each machine to be installed.
Offload & ingress the machine sections into the factory, raise the upper section and install the leg extensions for each Palletiser, move into position onto the datum lines for final assembly and installation using the Manitou type small crane.
Offload & ingress the machine into the factory for assembly and tilt to 13 degree’s for final installation using 2 small electric cranes
Offload & stand upright with a triple lift using 3 cranes due to low roof height for a full lift.
Turnkey installation of equipment & pipework. Design, Engineering & Layouts of production line pipework. Full production line equipment pipework installation from main headers to machines. Photo’s for jobs include:- Cupping Press cooling water pipework in mild steel screwed pipe. Bodymaker HP & LP air, vacuum, coolant & cooling water in 316 stainless steel crimped pipe.…

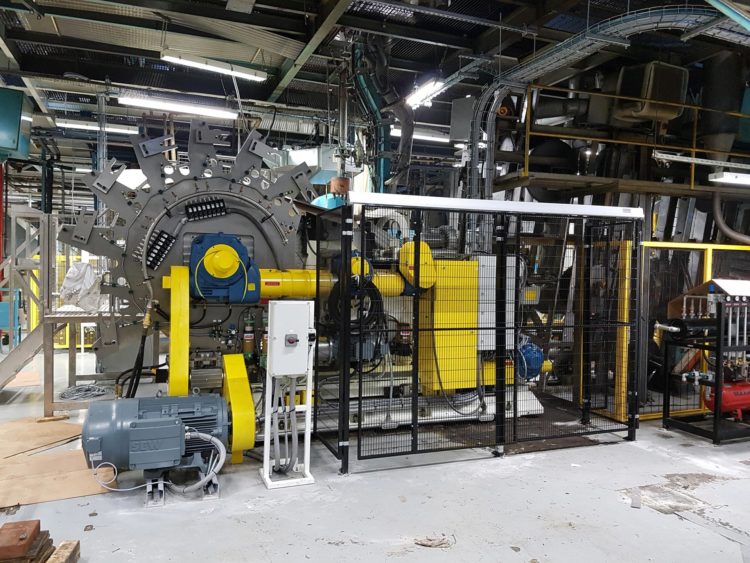

Mechanical and electrical installation of a used canmaker, which included on-site electrical upgrade, refurbishment, reprogramming & commissioning.

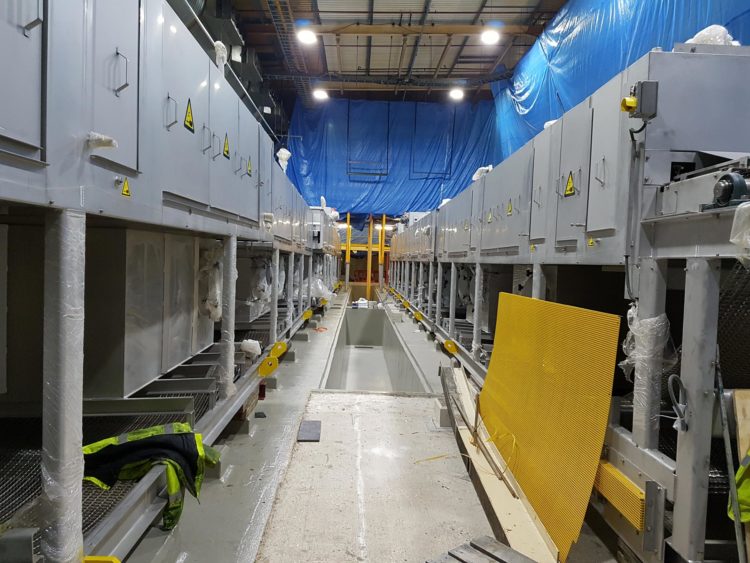

This project was a complete bespoke turnkey package tailored to our clients individual requirements. Evans Canlines Ltd provided complete civil, mechanical & electrical Installation of two VMI can washers within a running production facility. All protective measures were strictly controlled and adhered to, in order to prevent contamination and maintain production throughout installation works.
Electrical and mechanical disconnection & removal of old unit. New unit offloaded, ingressed and installed. Electrical and mechanical turnaround in 11 days for pre commissioning.
